MCBSTR9 User's Guide

Power Supply

Power is supplied to the MCBSTR9 Board on your PC using a standard USB connector.

The voltage regulators generate 3.3 Volts DC (IC3) and 1.8 Volts (IC4).

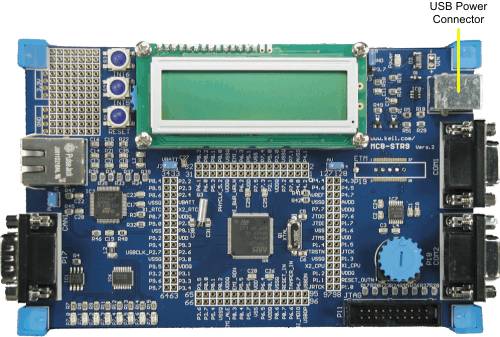

MCBSTR9 Board Power Connector
