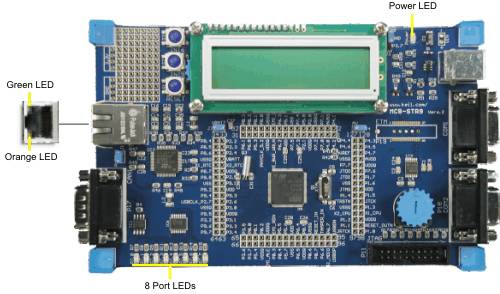

The LEDs on the MCBSTR9 board are:
- The POWER LED indicates that power is present on the board and shows the status of the USB DC voltage of 5 Volts.
- The 8 PORT LEDs indicate the P7.0 to P7.7 status.
- The ORANGE LED (right/lower) in the Ethernet connector indicates when ON: 100Mbit connection.
- The GREEN LED (left/upper) in the Ethernet connector indicates:
- when ON: GOOD LINK connection to LAN.
- when FLASHING: LAN traffic is present.
