Push Buttons

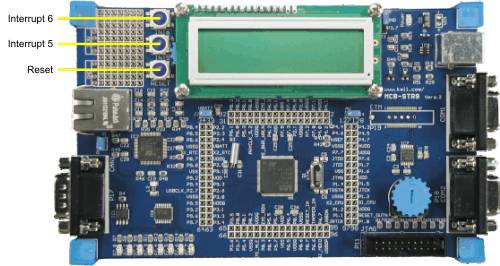

The three push buttons on the MCBSTR9 board are:
- The Reset (S1) push button connects to the voltage monitor and the power-up reset circuit. This resets the microcontroller.
- The Interrupt 5 (S2) push button connects to port pin P3.5 of the microcontroller.
- The Interrupt 6 (S3) push button connects to port pin P3.6 of the microcontroller.
