MCBSTR750 User's Guide
Introduction Setup Theory of Operation
Block Diagram Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface LCD Panel LEDs Push Buttons Potentiometer Serial Ports CAN Interface USB Interface SD Connector Writing Programs Example Programs STR75x Software LibraryPush Buttons

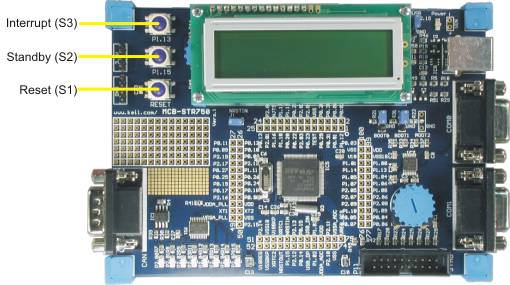

The three push buttons on the MCBSTR750 board are:
- The RESET (S1) push button connects to the voltage monitor and the power-up reset circuit. This resets the microcontroller.
- The Standby (S2) push button connects to port pin P1.15 of the microcontroller.
- The Interrupt (S3) push button connects to port pin P1.13 of the microcontroller.
