Connecting the MCBSTR730

To use the MCBSTR730 Evaluation Board with ULINK, you must connect:

• ULINK to the PC via a standard USB cable.
• ULINK to the JTAG connector of the MCBSTR730 board.
• Power to the MCBSTR730 Board using a 7V - 9V DC, 150mA power supply.

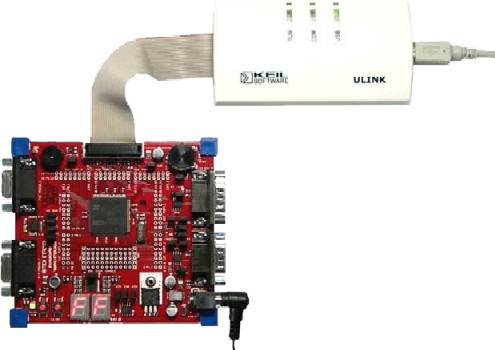

The following picture shows how to connect ULINK to the MCBSTR730 board.

Note

• If your application program puts the ARM device in idle or power-down mode, the Embedded ICE (and subsequently the ULINK) stops working. Therefore, do not put the ARM device into the power saving modes during the software development cycle.
