Debug the BLINKY example program following this procedure. The debugged program is ready for the serial output check.
Use the Start/Stop Debug Session toolbar button or the µVision command Debug - Start/Stop Debug Session to connect the debugger to the Keil ULINK Adapter. The CPU stops and connects to the Embedded ICE of the STR73x device. For details on the debugging features, refer to µVision User's Guide.
The Peripherals menu allows you to open different dialogs for Peripheral units on the STR73x devices. You may view and/or change the state and configuration of on-chip Peripherals using these dialogs. For example:
Go to Peripherals - I/O Ports - Port 2:
The I/O PORT 2 dialog reflects the status of the I/O ports on the MCBSTR730 Board.

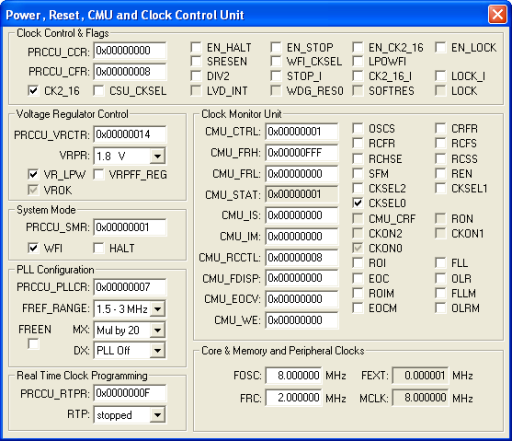

The Power, Reset, CMU and Clock Control Unit dialog shows, among other information, the Core & Memory and Peripheral Clocks configuration of the STR73x device.
