MCBSTR7 User's Guide
Introduction Setup Theory of Operation
Block Diagram Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface LEDs Push Buttons Potentiometer Serial Ports CAN Interface USB Interface Writing Programs Example Programs STR71x Firmware Library Interrupt FunctionsPower Supply
Power is supplied to the MCBSTR7 Board by an external 7 - 9 Volt DC power supply which must be capable of providing 150mA.

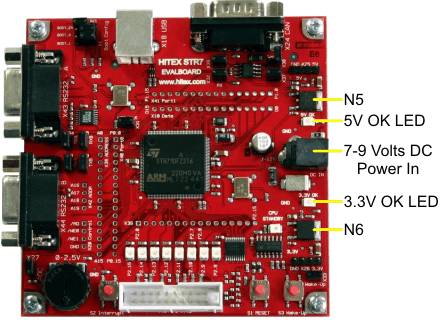

The connection uses a standard barrel plug. On the board, the voltage regulators N5 and N6 generate 5 Volts and 3.3 Volts DC.
 | Caution: Using a power supply with the wrong polarity may damage the board. |
The center hole provides positive voltage.
