MCBSTR7 User's Guide
Introduction Setup
Theory of Operation
Block Diagram Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface LEDs Push Buttons Potentiometer Serial Ports CAN Interface USB Interface Writing Programs Example Programs STR71x Firmware Library Interrupt FunctionsPush Buttons

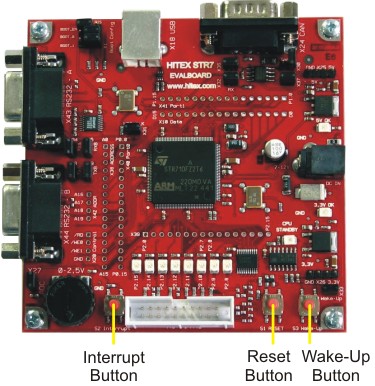

The three push buttons on the MCBSTR7 board are:
- S1 RESET is connected to the voltage monitor and power-up reset component of the board. Pressing the button resets the microcontroller in the same way a power-up does.
- S2 Interrupt is connected to the port pin P1.13 of the microcontroller.
- S3-Wake-up is connected to P0.15 of the microcontroller.
