Connecting the MCBSTR7

To use the MCBSTR7 Evaluation Board with ULINK, you must connect:

  • ULINK to the PC via a standard USB cable.
  • ULINK to the JTAG connector of the MCBSTR7 board.
  • Power to the MCBSTR7 Board using a 7V - 9V DC, 150mA power supply.

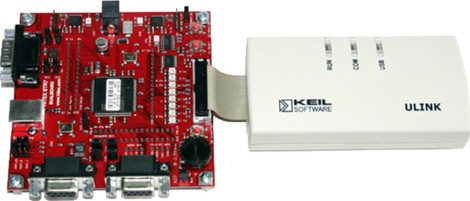

The following picture shows how to connect ULINK to the MCBSTR7 board.

ULINK Picture

Note

  • If your application program puts the ARM device in idle or power-down mode, the Embedded ICE (and subsequently the ULINK) stops working. Therefore, do not put the ARM device into the power saving modes during the software development cycle.
