MCBSTM32F200/400 User's Guide
Speaker/Headphone

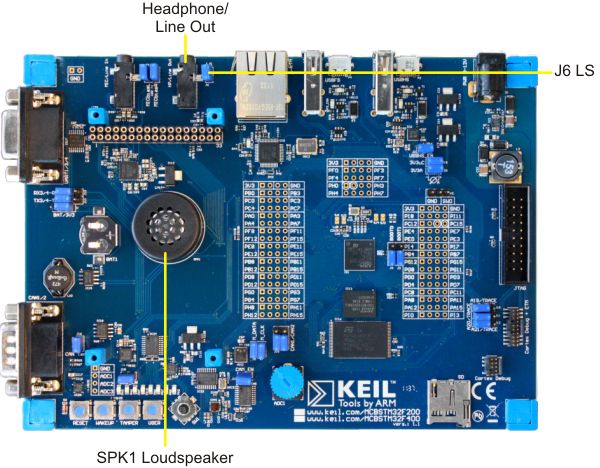

The MCBSTM32F200 board includes a speaker controlled by the low power stereo CODEC amplifier (IC6).
Jumper J6 (LS) controls loudspeaker (SPK1) and headphone/line output from the CODEC amplifier. Installing Jumper J6 enables the speaker and disables the headphone jack. Removing Jumper J6 disables the speaker and enables the headphone jack.
