Potentiometer

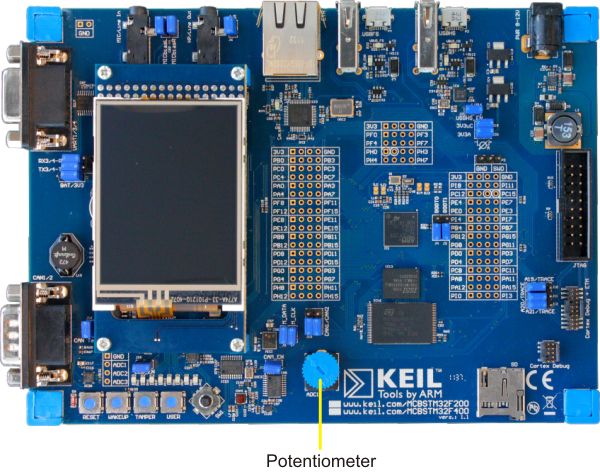

The potentiometer on the MCBSTM32F200 board connects to port pin PF9 (ADC3_IN7). The voltage range is 0.0-3.3 Volts.
