MCBSTM32F200/400 User's Guide
Introduction Setup
Theory of Operation
Block Diagram Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface ETM Interface LCD Panel w/Touch Screen Camera LEDs Push Buttons Joystick Potentiometer Speaker/Headphone Microphone Serial Port CAN Interface USB Interface Ethernet Interface MicroSD Connector Accelerometer External Memory Writing Programs Example ProgramsExternal Memory

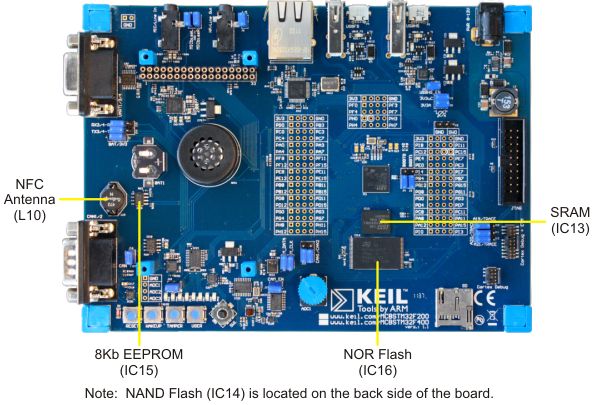

In addition to the Flash and RAM internal to the STM32F207IG (or STM32F407IG) MCU, the MCBSTM32F200/400 board contains the following external memory:
- 2 MB External SRAM located at IC13. Note: If jumpers J10, J11 and J12 are configured for ETM Trace, only 1 MB of this SRAM is accessible.
- 8 MB External NOR Flash located at IC16. Note: If jumpers J10, J11 and J12 are configured for ETM Trace, only 1 MB of this Flash is accessible.
- 512 MB External NAND Flash located at IC14 (on the back side of the board).
- 8 KB EEPROM with NFC (wireless near field communication) interface located at IC15. The NFC antenna is located at L10.
Chip Select and Addressing for External Memory and LCD
The table below identifies the chip select, pin and address area for the external memory and LCD devices on the MCBSTM32F200 board.
| Device | Chip Select / Pin | Address Area |
|---|---|---|
| NOR-Flash | FSMC_NE1 / PD7 | 0x60000000 - 0x607FFFFF |
| NAND-Flash | FSMC_NCE3 / PG9 | Not directly mapped to a memory area. |
| SRAM | FSMC_NE3 / PG10 | 0x68000000 - 0x681FFFFF |
| LCD | FSMC_NE4 / PG12 | 0x6C000000 - 0x6C000003 |
