MCBSTM32F200/400 User's Guide
Introduction Setup
Theory of Operation
Block Diagram Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface ETM Interface LCD Panel w/Touch Screen Camera LEDs Push Buttons Joystick Potentiometer Speaker/Headphone Microphone Serial Port CAN Interface USB Interface Ethernet Interface MicroSD Connector Accelerometer External Memory Writing Programs Example ProgramsLEDs

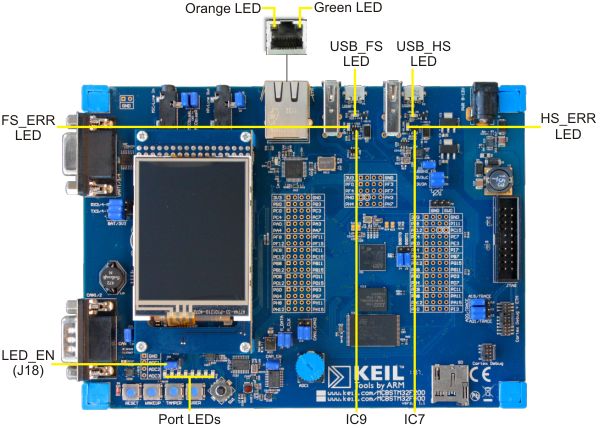

The MCBSTM32F200 board has the following LED indicators:
- The USB_FS LED indicates 5VDC is present on the full-speed USB VBUS connector.
- The USB_HS LED indicates 5VDC is present on the high-speed USB VBUS connector.
- The FS_ERR LED indicates a fault condition (short circuit, over-current or over-temperature) at the IC7 full-speed USB power switch.
- The HS_ERR LED indicates a fault condition (short circuit, over-current or over-temperature) at the IC9 high-speed USB power switch.
- The 8 Port LEDs marked PG.6 - PG.8, PH.2, PH.3, PH.6, PH.7 and PI.10 connect to their respective port pins when jumper LED is installed. These LEDs are useful for indicating program status while testing your applications.
- The ORANGE LED (right/lower) on the Ethernet connector indicates LAN traffic is present.
- The GREEN LED (left/upper) on the Ethernet connector indicates a good link connection to the LAN.
