MCBSTM32F200/400 User's Guide
LCD Panel w/Touch Screen

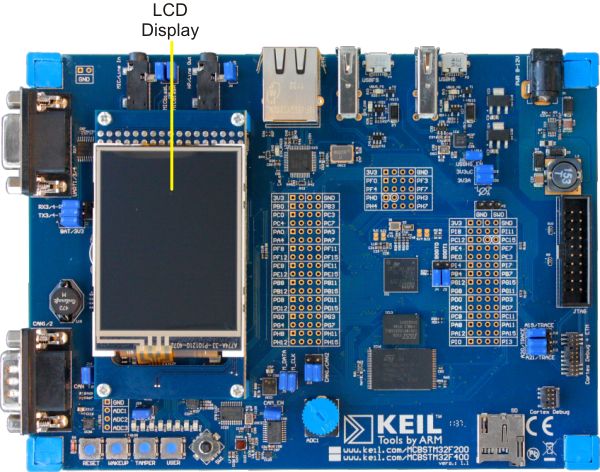

The LCD-TFT color graphics display panel (AMPIRE AM240320L8TNQW) contains a 240x320 pixel screen and connects using a 16-bit interface. The LCD panel is mounted on the MCBSTM32F200 Display Board, and connects to MCBSTM32F200 Base Board via 34-pin header.
This LCD panel includes a 4-wire, resistive touch screen controlled by an STMicroelectronics STMPE811 touch screen controller (IC2).
See External Memory for chip select and addressing assignments for the LCD panel.
