Block Diagram Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface ETM Interface LCD Panel w/Touch Screen Camera LEDs Push Buttons Joystick Potentiometer Speaker/Headphone Microphone Serial Port CAN Interface USB Interface Ethernet Interface MicroSD Connector Accelerometer External Memory Writing Programs Example ProgramsPush Buttons

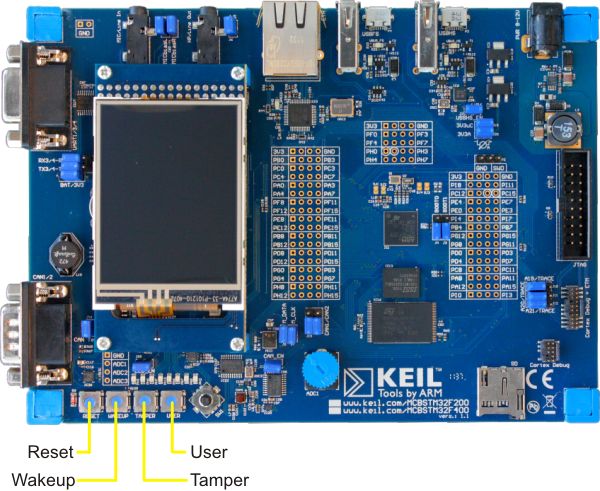

The four push buttons on the MCBSTM32F200 board are:
- The User push button connects to port pin PG15 of the STM32F207IG device and is available for general use.
- The Tamper push button connects to port pin PC13 of the microcontroller controlling the anti-tamper feature of the STM32F207IG device.
- The Wakeup push button connects to port pin PA0 of the microcontroller. This wakes up the microcontroller out of sleep mode.
- The Reset push button connects to the voltage monitor and the power-up reset circuit. This resets the microcontroller.
