Board Setup

The MCBSTM32F200 Evaluation Board may be powered:

  • From a PC via USB A to Micro-B cable.
  • From an 8-12 VDC, 500mA external power adapter.

For downloading and debugging, the MCBSTM32F200 Evaluation Board connects directly to the Keil µVision Debugger using the Keil ULINK USB-JTAG Adapter, so no additional software is required on the board.

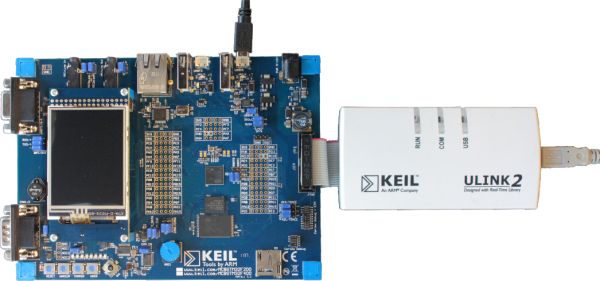

MCBSTM32F200 Board Connected to ULINK2
