Introduction

You may use the Cortex-M3 based MCBSTM32F200 Evaluation Board to generate and test application programs for the STMicroelectronics STM32F207x microcontroller family or the Cortex-M4 based MCBSTM32F400 Evaluation Board for the STM32F407x microcontroller family. With this hands-on process, you can determine the hardware and software requirements for current and future product development.

The MCBSTM32F200 Evaluation Board ships with the STM32F207IG device that is a superset of several other device variants of the STM32F207x microcontroller seriesst/stm32f407ig/" target="_blank">STM32F407IG device that is a superset of several other device variants of the STM32F407x microcontroller series. The MCBSTM32F200 and MCBSTM32F400 boards contain all the hardware components required in a single-chip STM32x system.

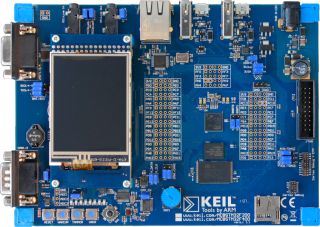

MCBSTM32F200 Board

MCBSTM32F200 Board

Note

  • The MCBSTM32F200 and MCBSTM32F400 use the same base board and on-chip peripherals. Only the MCU is different between the two boards.
