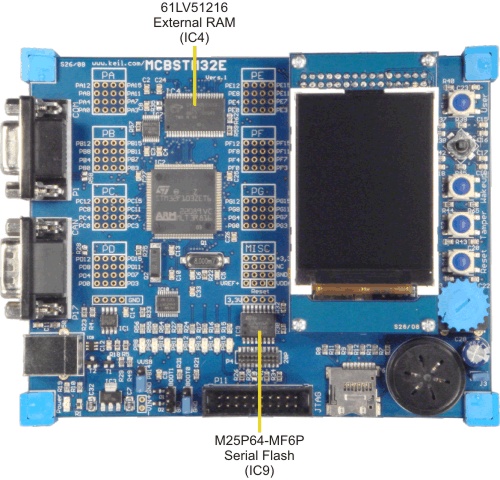

The MCBSTM32E board contains external RAM and external serial (SPI) Flash memory components.
The ISSI 61LV51216 provides 1 Mbyte of high-speed, static RAM at location IC4. The STM32F103ZE accesses this RAM via Bank 1 (0x60000000 to 0x6FFFFFFF) of the Flexible Static Memory controller (FSMC). Within Bank 1, the 4 chip select signals NE1 through NE4 are assigned to the following fixed memory addresses:
- NE1 from 0x60000000 to 0x63FFFFFF
- NE2 from 0x64000000 to 0x67FFFFFF
- NE3 from 0x68000000 to 0x6BFFFFFF (external RAM)
- NE4 from 0x6C000000 to 0x6FFFFFFF (LCD controller)
The STMicroelectronics M25P64-VMF6P Flash memory with SPI bus interface provides 8 Mbytes of serial Flash external storage at location IC9.
