Block Diagram Schematics Technical Data Prototyping Area Microcontroller External Memory Power Supply Configuration JTAG Interface ETM Interface LCD Panel LEDs Push Buttons Joystick Potentiometer Speaker Serial Port CAN Interface USB Interface MicroSD Connector Writing Programs Example Programs STM32F10x Software LibraryLCD Panel

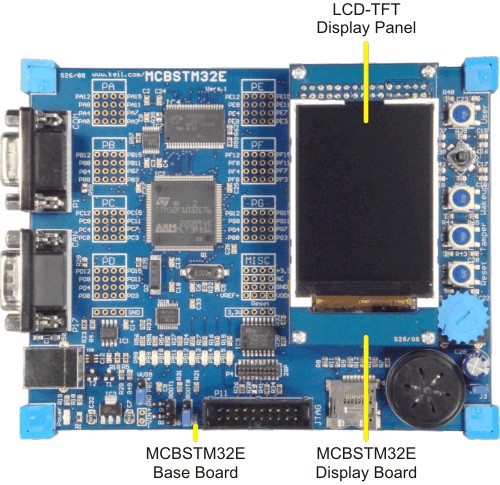

The LCD-TFT color graphics display panel (AMPIRE AM240320L8TNQW) contains a 240x320 pixel screen and connects using a 16-bit interface. The LCD panel is mounted on the MCBSTM32E Display Board, and connects to MCBSTM32E Base Board via 30-pin header.
