MCBSTM32E User's Guide
JTAG Interface

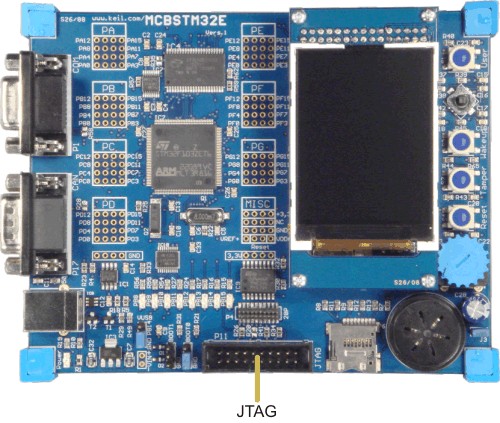

The JTAG Interface connector provides debugging and emulator support for the STRM32F103ZE device. The JTAG Interface allows application debugging and programming of on-chip and off-chip Flash devices.
The standard JTAG 20-pin connector works with the Keil ULINK and many third party tool vendors.
Serial Wire Mode Interface
The MCBSTM32E board also supports the Serial Wire Mode of Cortex-M3 based devices. In Serial Wire mode, only the pins TCLK and TMS are used. TDO is an optional trace data output pin.
