Joystick

The 5-position joystick control on the MCBSTM32E board grounds one of 5 possible port pins depending on how the the joystick control handle is positioned. The control may be positioned left, right, up, down or pushed toward the board (select).

  • The Left joystick position connects to port pin PG14 of the STM32F103ZE device to ground.
  • The Right joystick position connects to port pin PG13 of the STM32F103ZE device to ground.
  • The Up joystick position connects to port pin PG15 of the STM32F103ZE device to ground.
  • The Down joystick position connects to port pin PD3 of the STM32F103ZE device to ground.
  • The Select joystick position connects to port pin PG7 of the STM32F103ZE device to ground.

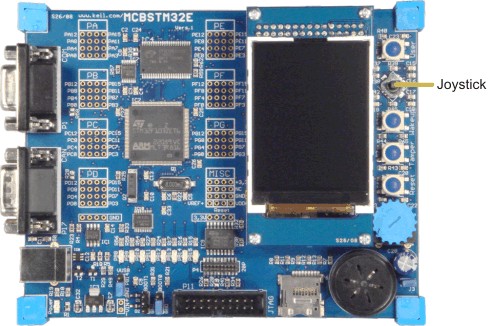

MCBSTM32E Board Joystick
