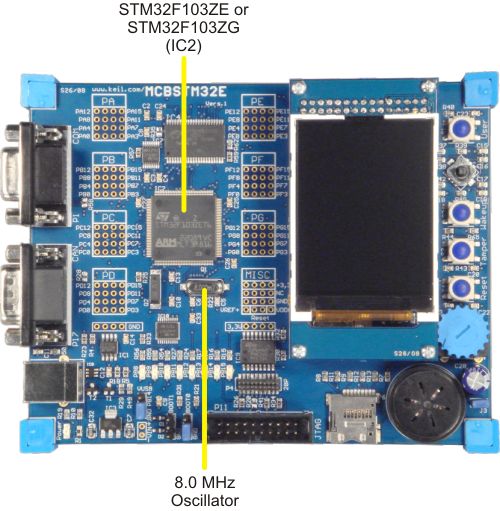

The STMicroelectronics STM32F103ZE or STM32F103ZG microcontroller (IC2) provided with the MCBSTM32E or MCBSTM32EXL board is a high-end STM32F103Zx device supporting on-chip CAN and USB.
A 8.0 MHz oscillator provides the clock signal for the MCU.
