MCBSTM32E User's Guide
Introduction Setup
Theory of Operation
Block Diagram Schematics Technical Data Prototyping Area Microcontroller External Memory Power Supply Configuration JTAG Interface ETM Interface LCD Panel LEDs Push Buttons Joystick Potentiometer Speaker Serial Port CAN Interface USB Interface MicroSD Connector Writing Programs Example Programs STM32F10x Software LibraryCAN Interface

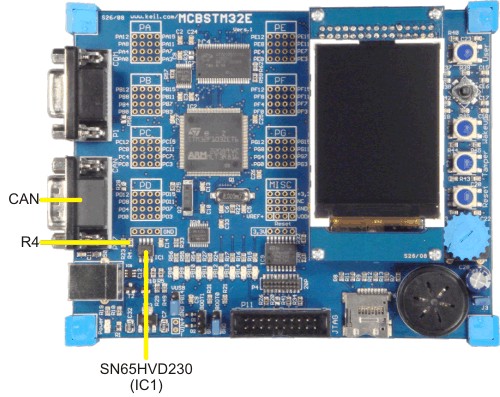

The single CAN Interface uses the SN65HVD230 (marked as VP230) CAN driver (IC1) and termination resistor (R4) on the MCBSTM32E board.
LEDs PB8 and PB9 are used to indicate CAN receive and CAN transmit activity, respectively. When pin PB9 is configured as input, LED PB9 indicates CAN controller status, When pin PB9 is configured as output, LED PB9 just reflects the status of port pin PB9.
The CAN DB9 connector is wired so that Pin 2 provides the CANL signal and Pin 7 provides the CANH signal. These pins are connected to the SN65HVD230 CAN driver IC.
Note
- CAN termination resistors make it easy to connect the MCBSTM32E board to your CAN network but they are not always required. When connecting the MCBSTM32E Board to a CAN network, you may need to remove the termination resistor.
