Prototyping Area

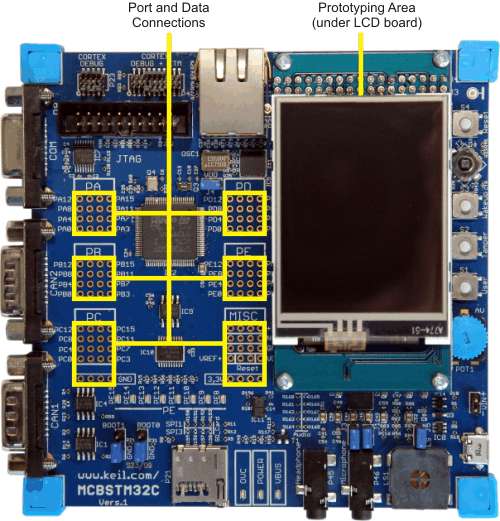

The provides blocks for connecting the address and data lines, and ports PA, PB, PC, PD, PE and VREF+, VDD, Reset, 3.3VDC and ground. It also provides an area (located under the LCD display board) for adding prototype circuits and components.

Note

• All microcontroller signals are brought out to pins and are driven directly by the microcontroller. Exercise caution to avoid overloading these signal lines.
