MCBSTM32C User's Guide
Potentiometer

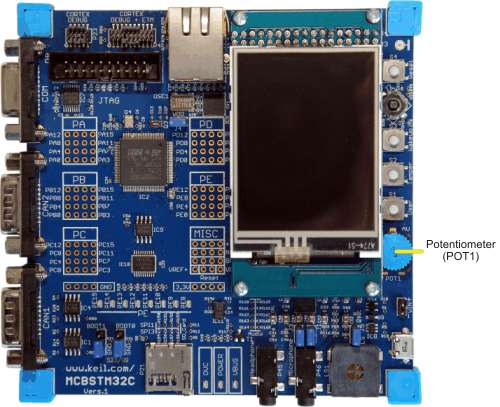

The potentiometer on the MCBSTM32C board connects to port pin PC4 (ADC12_IN14). The voltage range is 0.0-3.3 Volts.
