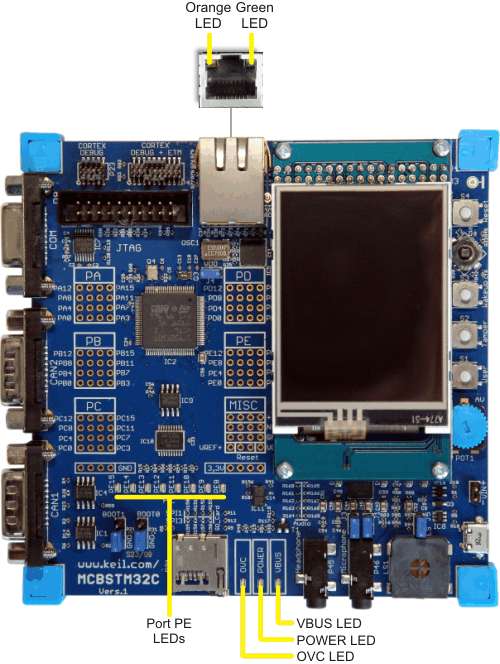

The MCBSTM32C board has the following LED indicators:
- The VBUS LED indicates USB activity.
- The POWER LED indicates that power is present on the board.
- The OVC LED indicates the 500mA USB output current limit has been exceeded.
- The 8 Port LEDs marked PE.8 - PE.15 connect to their respective port pins when jumper LED is installed. These LEDs are useful for indicating program status while testing your applications.
- The ORANGE LED (right/lower) on the Ethernet connector indicates LAN traffic is present.
- The GREEN LED (left/upper) on the Ethernet connector indicates a good link connection to the LAN.
