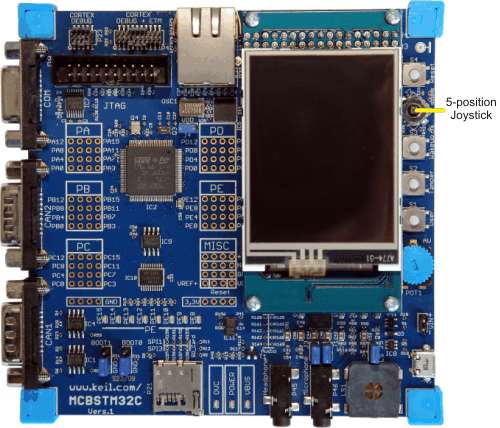

The 5-position joystick control on the MCBSTM32C board grounds one of 5 possible port pins depending on how the the joystick control handle is positioned. The control may be positioned left, right, up, down or pushed toward the board (select).

  • The Left joystick position connects to port pin PD15 of the STM32F107VC device to ground.
  • The Right joystick position connects to port pin PD13 of the STM32F107VC device to ground.
  • The Up joystick position connects to port pin PD12 of the STM32F107VC device to ground.
  • The Down joystick position connects to port pin PD14 of the STM32F107VC device to ground.
  • The Select joystick position connects to port pin PD11 of the STM32F107VC device to ground.
