The ETM Interface connector provides instruction-level trace debugging support for the STRM32F107VC device.

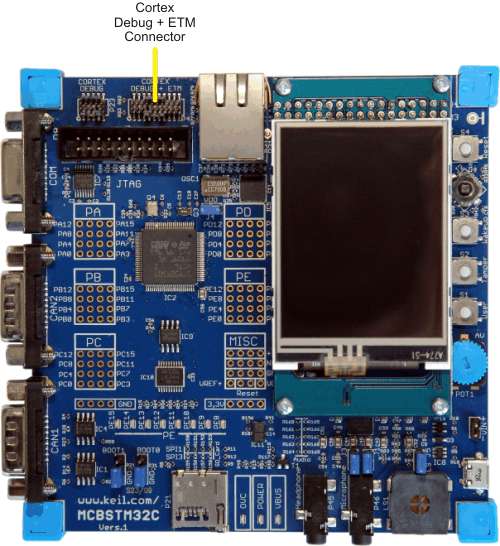

A 20-pin header (Samtec FTSH-120) is included at location P4 for connecting to ETM Trace hardware.
