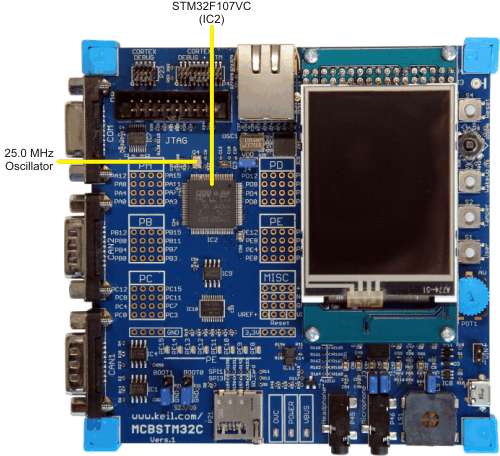

The STMicroelectronics STM32F107VC microcontroller (IC2) provided with the MCBSTM32C board is a high-end STM32F107x device with on-chip CAN and USB.
A 25.0 MHz oscillator provides the clock signal for the MCU.
