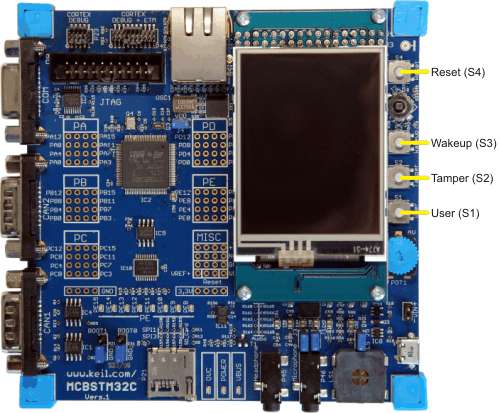

The four push buttons on the MCBSTM32C board are:
- The User (S1) push button connects to port pin PB7 of the STM32F107VC device and is available for general use.
- The Tamper (S2) push button connects to port pin PC13 of the microcontroller controlling the anti-tamper feature of the STM32F107VC device.
- The Wakeup (S3) push button connects to port pin PA0 of the microcontroller. This wakes up the microcontroller out of sleep mode.
- The Reset (S4) push button connects to the voltage monitor and the power-up reset circuit. This resets the microcontroller.
