The MCBSTM32 board connects the on-chip serial UART to the ST3232 (IC7), which converts the logic signals to RS-232 voltage levels.

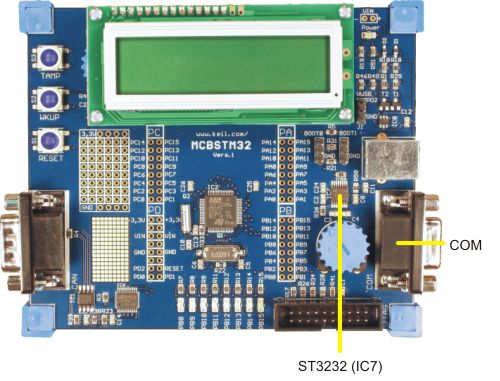

The serial port (COM) is configured as a standard 3-wire interface. The DB9 connector is wired directly to the ST3232 serial UART. Refer to the figure below for details.
