MCBSTM32 User's Guide
Introduction Setup Theory of Operation
Block Diagram Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface LCD Panel LEDs Push Buttons Potentiometer Serial Port CAN Interface USB Interface SD Connector Writing Programs Example Programs STM32F10x Software LibraryPower Supply

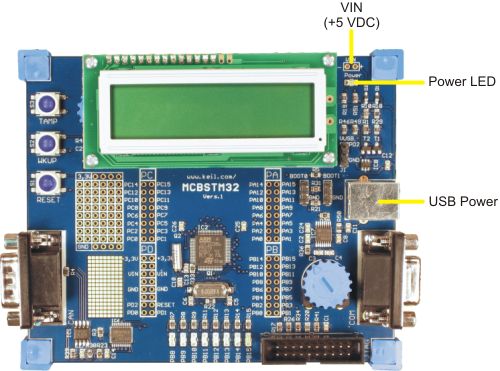

Power is supplied to the MCBSTM32 Board on your PC using a standard USB connector. You may also power the board from a bench supply using the VIN connections on the board near the Power LED.
The voltage regulator (IC3) generates 3.3 Volts DC.
Note:
- IC3 is located under the LCD panel assembly.
