MCBSTM32 User's Guide
Introduction Setup Theory of Operation
Block Diagram Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface LCD Panel LEDs Push Buttons Potentiometer Serial Port CAN Interface USB Interface SD Connector Writing Programs Example Programs STM32F10x Software LibraryJTAG Interface

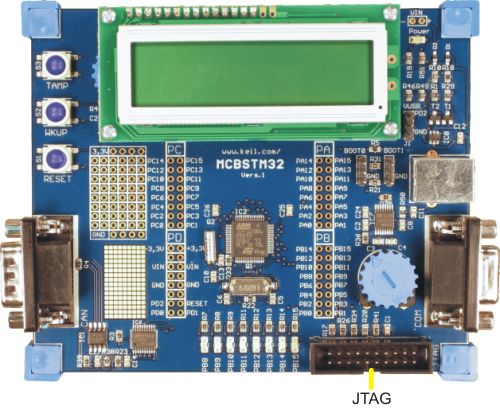

The JTAG Interface connector provides debugging and emulator support for the STRM32F103 device. The JTAG Interface allows application debugging and programming of on-chip and off-chip Flash devices.
The standard JTAG 20-pin connector works with the Keil ULINK and many third party tool vendors.
Serial Wire Mode Interface
The MCBSTM32 board also supports the Serial Wire Mode of Cortex-M3 based devices. In Serial Wire mode, only the pins TCLK and TMS are used. TDO is an optional trace data output pin.
