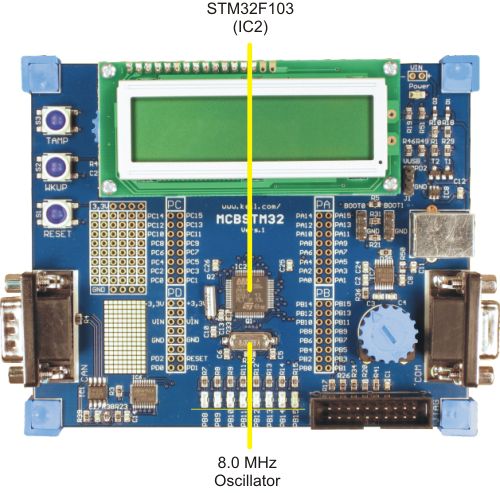

The STMicroelectronics STM32F103 microcontroller (IC2) provided with the MCBSTM32 board is a high-end STM32F10x device with on-chip CAN and USB.
A 8.0 MHz oscillator provides the clock signal for the MCU.
