Block Diagram Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration JTAG Interface LCD Panel LEDs Push Buttons Potentiometer Serial Port CAN Interface USB Interface SD Connector Writing Programs Example Programs STM32F10x Software LibraryCAN Interface

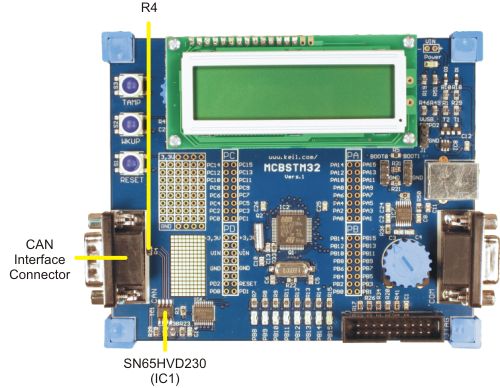

The single CAN Interface uses the SN65HVD230 (marked as VP230) CAN driver (IC1) and termination resistor (R4) on the MCBSTM32 board.
The CAN DB9 connector is wired so that Pin 2 provides the CANL signal and Pin 7 provides the CANH signal. These pins are connected to the SN65HVD230 CAN driver IC.
Note
- CAN termination resistors make it easy to connect the MCBSTM32 board to your CAN network but they are not always required. When connecting the MCBSTM32 Board to a CAN network, you may need to remove the termination resistor.
