Block Diagram Schematics Technical Data Prototyping Microcontroller Power Supply JTAG/SW Interface LEDs Push Buttons Potentiometer USB Interface Writing Programs Example ProgramsPower Supply

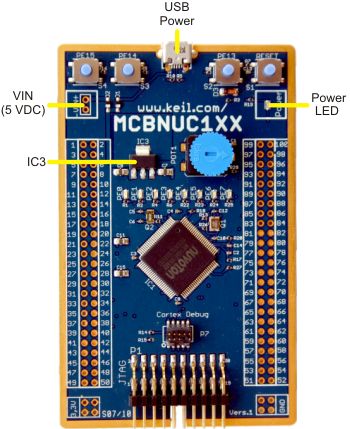

Power is supplied to the MCBNUC1xx Board from your PC using either:
- a USB A to Micro B cable.
You may also power the board from a bench supply using the VIN connections on the board.
The voltage regulator (IC3) provides 3.3 Volts DC to the board.
The POWER LED indicates that +5 Volts DC is present on the board.
