MCBNUC1xx User's Guide
Introduction Setup
Theory of Operation
Block Diagram Schematics Technical Data Prototyping Microcontroller Power Supply JTAG/SW Interface LEDs Push Buttons Potentiometer USB Interface Writing Programs Example ProgramsLEDs

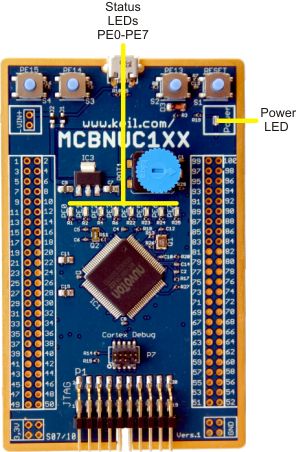

The MCBNUC1xx board has the following LED indicators:
- The POWER LED indicates that +5 VDC power is present on the board.
- The 8 Port LEDs marked PE0 - PE7 connect to their respective port pins. These LEDs are useful for indicating program status while testing your applications.
