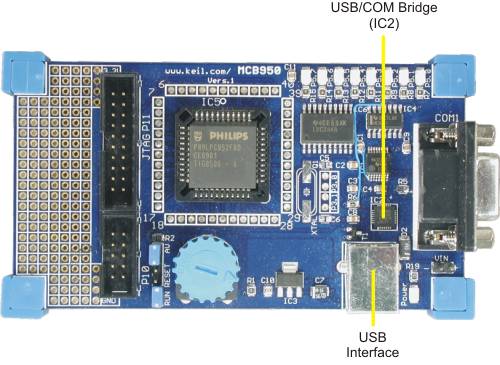

The USB Interface uses the standard USB connector on the MCB950 board.
The MCB950 board connects to a PC via a standard USB cable that provides power and emulates a COM interface for UART0. The USB/COM bridge (IC2) converts the UART signals to USB. The USB/COM interface may be used for user I/O or in bootstrap mode for Flash programming tools.
