MCB950 User's Guide
Power Supply

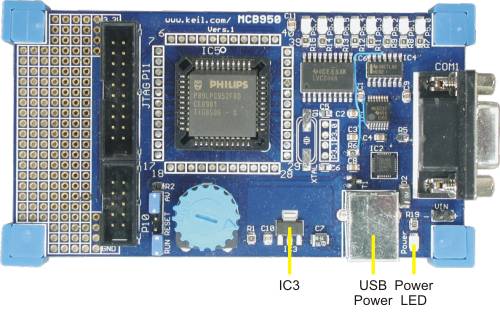

The MCB950 board is a USB-powered device.
The voltage regulator (IC3) generates 3.3 Volt DC. The Power LED indicates when power is applied to the board.
Caution: Do not attach additional power supplies (such as batteries) while the USB supplies power to the MCB950. This may harm your PC!
