Running the ISD51 Example

To create, download, and run the ISD51 example, perform the following steps. If there are any errors, check the verify COM connection and configuring the MCB950 for the jumper settings (RESET: ON, RUN: OFF).

Start µVision and use the following menu commands.

Load Project - Open Project with the file project KEIL\C51\ISD51\EXAMPLES\PHILIPSLPC95x\ISD51_DEMO.UV2.
Generate the application with Project - Build target.
Connect the MCB950 Board and configure the jumpers for Flash Magic: RUN - OFF, RESET - ON.
Download the application with Flash - Flash Download to the MCB950 Board. You might need to change the COM port setting as described in µVision Flash Download.

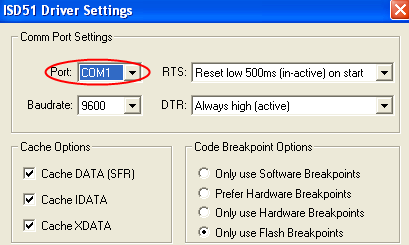

Open the dialog Project - Options for Target - Debug - Keil ISD51 In-System Debugger Settings and verify the COM port setting. Note that you might need to adjust the COM port number.
"µVision Debugger - Run/Stop Debug Session starts program debugging that allows program testing as described in the µVision User's Guide.

The debugger commands are in the (create link) Getting Started User's Guide (..\KEIL\C51\HLP\GSA.CHM) in the Execute Code topic.
