MCB950 User's Guide
Introduction Setup Theory of Operation Writing Programs Example Programs
Example Configuration BLINKY Building BLINKY Downloading BLINKY Debugging BLINKY Checking Serial Output Using ULINK Target DriverChecking Serial Output
To check the serial output from the BLINKY program, connect the COM serial cable on the board to an unused COM port on your development PC. Use a terminal emulation program, such as Microsoft Windows HyperTerminal, to display the serial data on your PC monitor.
To start the Microsoft Windows HyperTerminal application, select Start - Programs - Accessories - Communication - Hyperterminal.

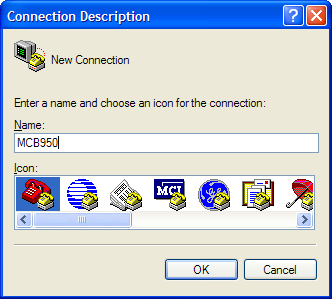

Enter a Name for the new connection, for example: MCB950.
Select the PC COM port COM 3 in Connect Using.

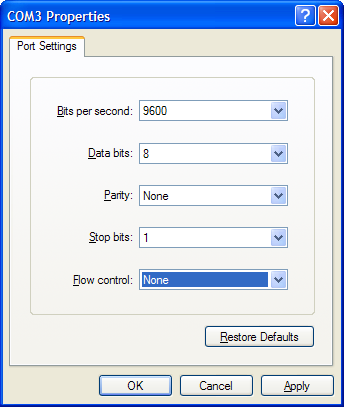

Select 9600 Bits per second, 8 Data bits, Parity None, Stop bits 1 and Flow control None.

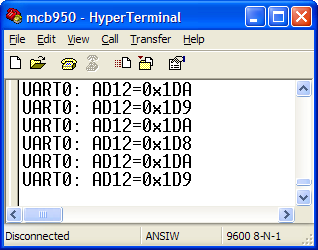

Click OK. The A/D input voltage on P0.3/AD02 displays as a hexadecimal value on both serial ports from the MCB950 board.
To view the UART1 output:
- Connect a standard RS232 cable to the COM0 port of your computer.
- Configure another instance of Hyperterminal with Start - Programs - Accessories - Communication - Hyperterminal.
- Configure a connection using the COM1 interface. All other settings are identical.

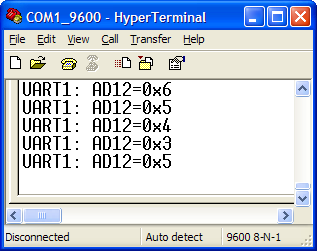

When the Hyperterminal connects, the following output displays on the UART1 interface.
