MCB9B500 User's Guide
Introduction Setup
Theory of Operation
Block Diagram Schematics Technical Data Prototyping Microcontroller Power Supply JTAG Interface ETM Interface LEDs Push Buttons Potentiometer USB Interface Writing Programs Example ProgramsLEDs

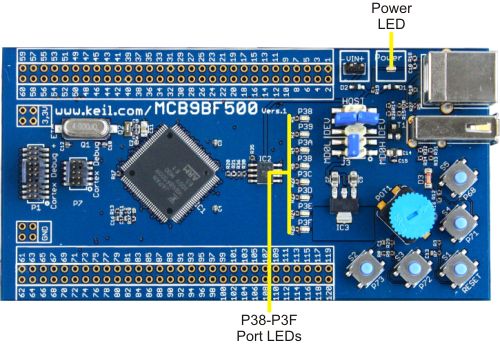

The MCB9B500 board has the following LED indicators:
- The POWER LED indicates that power is present on the board and shows the status of the USB DC voltage of 5 Volts.
- The 8 Port LEDs marked P38 - P3F connect to the respective pins on the I/O port. These LEDs are useful for indicating program status while testing your applications.
