Prototyping Area

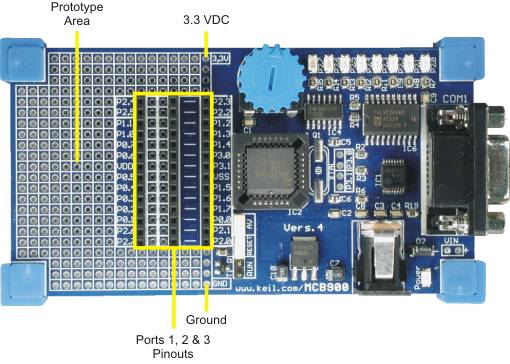

The prototyping area provides blocks for connecting the address and data lines, and ports P0, P1, and P2, 3.3 VDC and Ground (GND) reference.

Note

• All microcontroller signals are brought out to pins and are driven directly by the microcontroller. Exercise caution to avoid overloading these signal lines.
