MCB900 User's Guide
Potentiometer

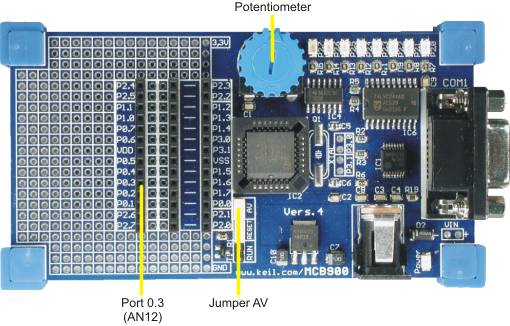

The potentiometer on the MCB900 board connects to Port 0.3 (AN12) when the Jumper AV is enabled. The voltage range is 0.0-3.3 Volts.
