MCB900 User's Guide
Introduction Setup Theory of Operation
Block Diagram PCB Illustration Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration LEDs Potentiometer Serial Port Writing Programs Example ProgramsLEDs

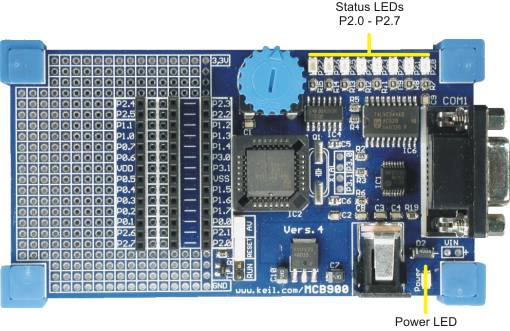

The LEDs on the MCB900 board are:
- The POWER LED indicates that power is present on the board.
- P2.0 - P2.7 connect to eight Port 2 pins. These LEDs can display program status while testing your applications.
