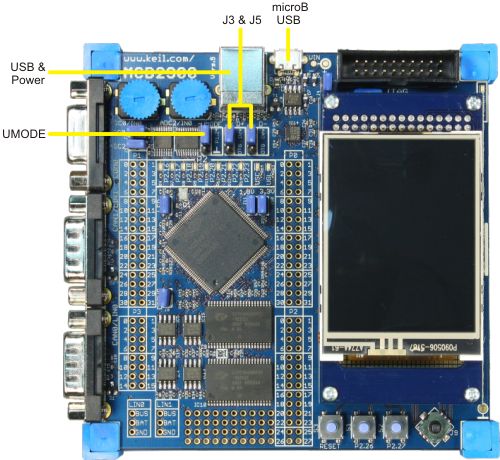

The USB Interface supports two standard USB connectors on the MCB2929 board:
- A USB B connector for power and for USB Device operation.
- A microB USB connector for USB-OTG operation.
To configure USB B connector as a Device, the D+ and D- jumpers at J3 and J5 should be installed in the Dev position. To allow the board to always connect as a USB device make sure the UMODE jumper (J7) is at the P1.24 position.
For OTG operations, the D+ and D- jumpers at J3 and J5 should be installed in the OTG position.
