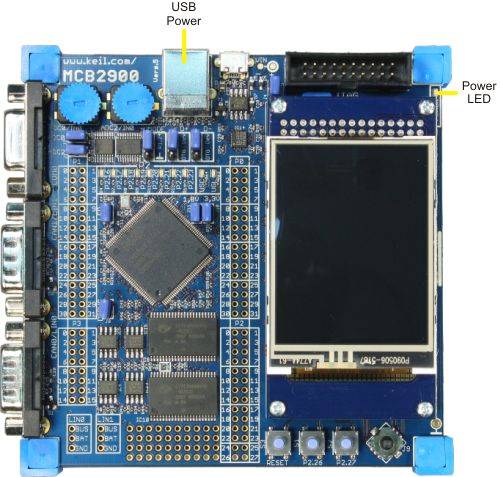

Power is supplied to the MCB2929 board on your PC via a standard USB-B connector.
The voltage regulators IC2, IC3 and IC7 generate 5.0 Volts DC, 3.3 Volts DC and 1.8 Volts DC, respectively. The Power LED indicates that power is present on the board.
Note
- IC2, IC3 and IC7 are located under the LCD module.
Caution: Do not attach additional power supplies (such as batteries) while the USB supplies power to the MCB2929. This may harm your PC!
