MCB2929 User's Guide
LEDs

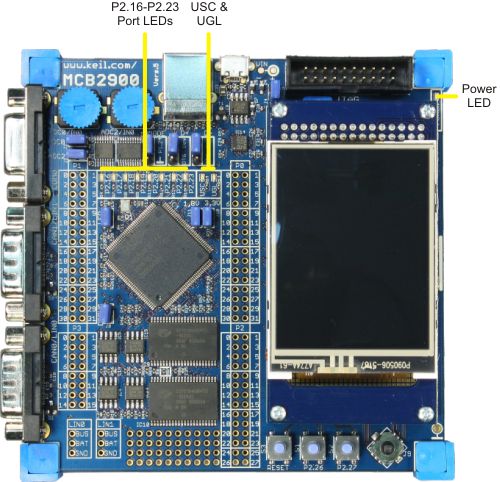

The LEDs on the MCB2929 board are:
- The POWER LED indicates that power is present on the board.
- LEDs 2.16-2.23 connect to their respective port pins when jumper LED is installed. These LEDs are useful for indicating program status while testing your applications. Removing Jumper LED disables the LED driver chip (IC12).
- The USC LED indicates a USB soft connect from P1.24.
- The UGL LED indicates a good USB link via P2.9.
