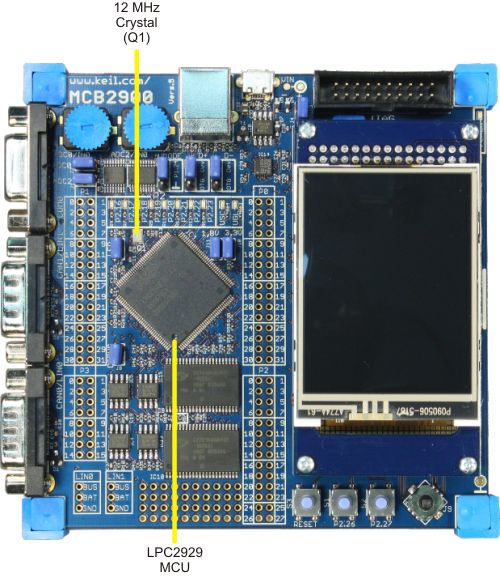

The NXP LPC2929 microcontroller (IC1) provided with the MCB2929 board is a high-end LPC29xx device with advanced ADC, CAN and USB capabilities.
A 12.0 MHz crystal (Q1) provides the clock signal for the CPU.
