Prototyping Area

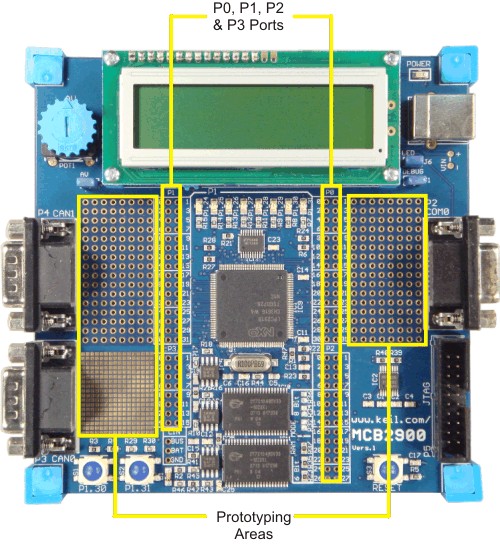

The prototyping area provides blocks for adding components and connecting the address, data, and I/O ports.

Note

• All microcontroller signals are brought out to pins and are driven directly by the microcontroller. Exercise caution to avoid overloading these signal lines.
